BYD (Build Your Dreams) was founded in 1995 with the aim of contributing to a better life through technological innovation. This Chinese company has since grown into the world’s largest manufacturer of rechargeable batteries and energy storage systems.
- Easy to expand
- Over 20 years of experience
Active in more than 50 countries

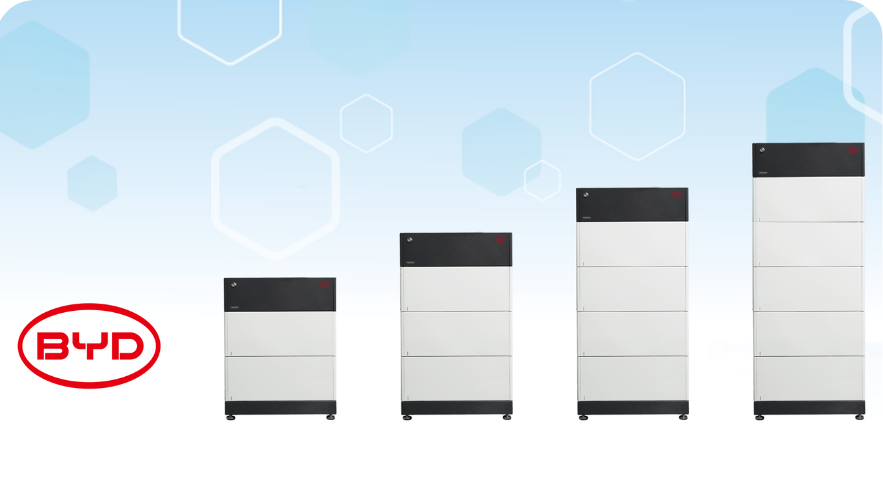

BYD Battery-Box HVM & HVS
The HVM & HVS Battery-Box storage systems from BYD are currently available in a range from 5.12 kWh to 22.1 kWh. these systems come complete with a battery control unit (BCU) and base & cover. visit our webshop for current stock availability.
BYD batteries in our webshop range

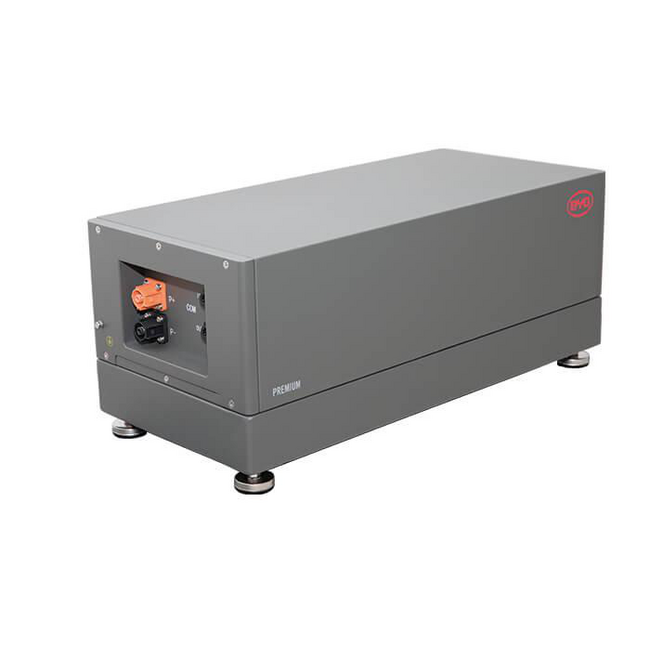

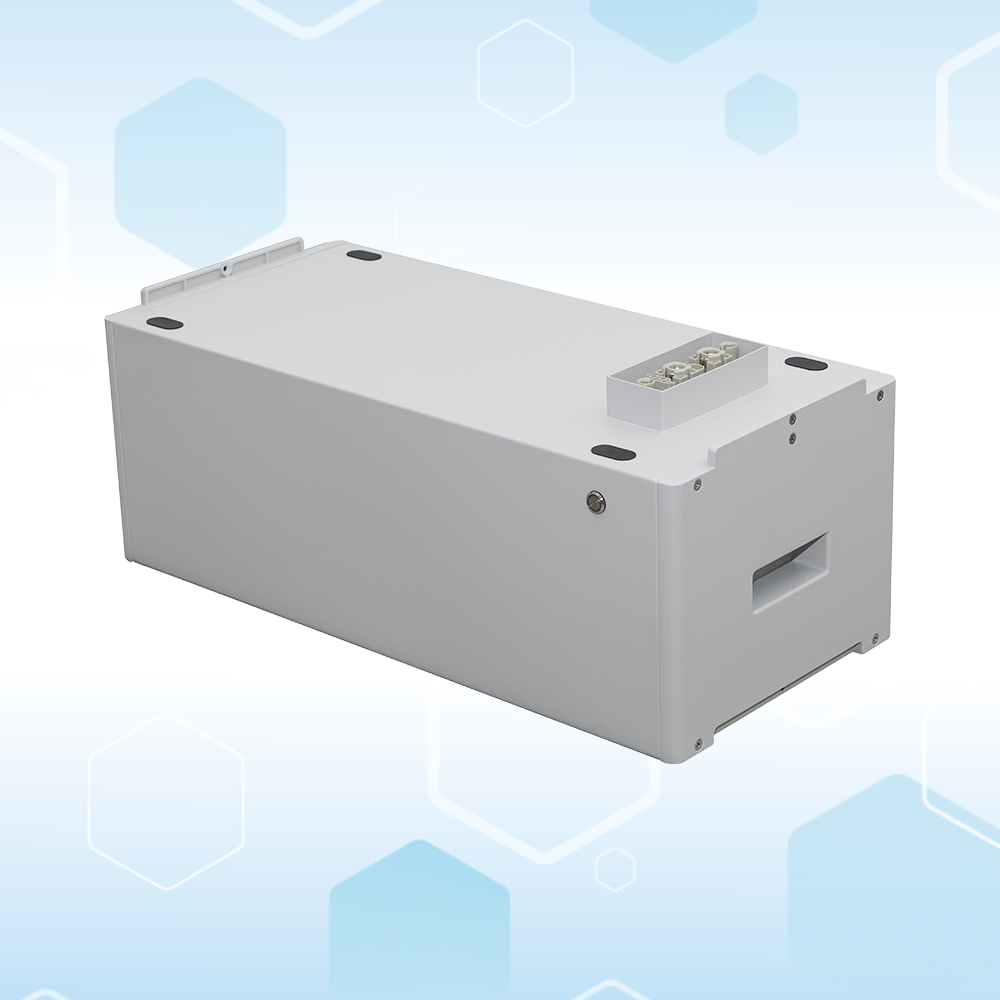

LVS battery module
The 4.0 low voltage Battery-Box from BYD consists of a single module and weighs 38 kg. The battery offers maximum flexibility, as it can be expanded up to 256 kWh. Up to 64 modules can be connected in parallel. Each tower requires a minimum of 1 and a maximum of 6 modules. A total of up to 16×4 towers can be installed per system. Whether you need a small or large setup, the BYD LVS battery module allows you to easily tailor your system to your energy needs.

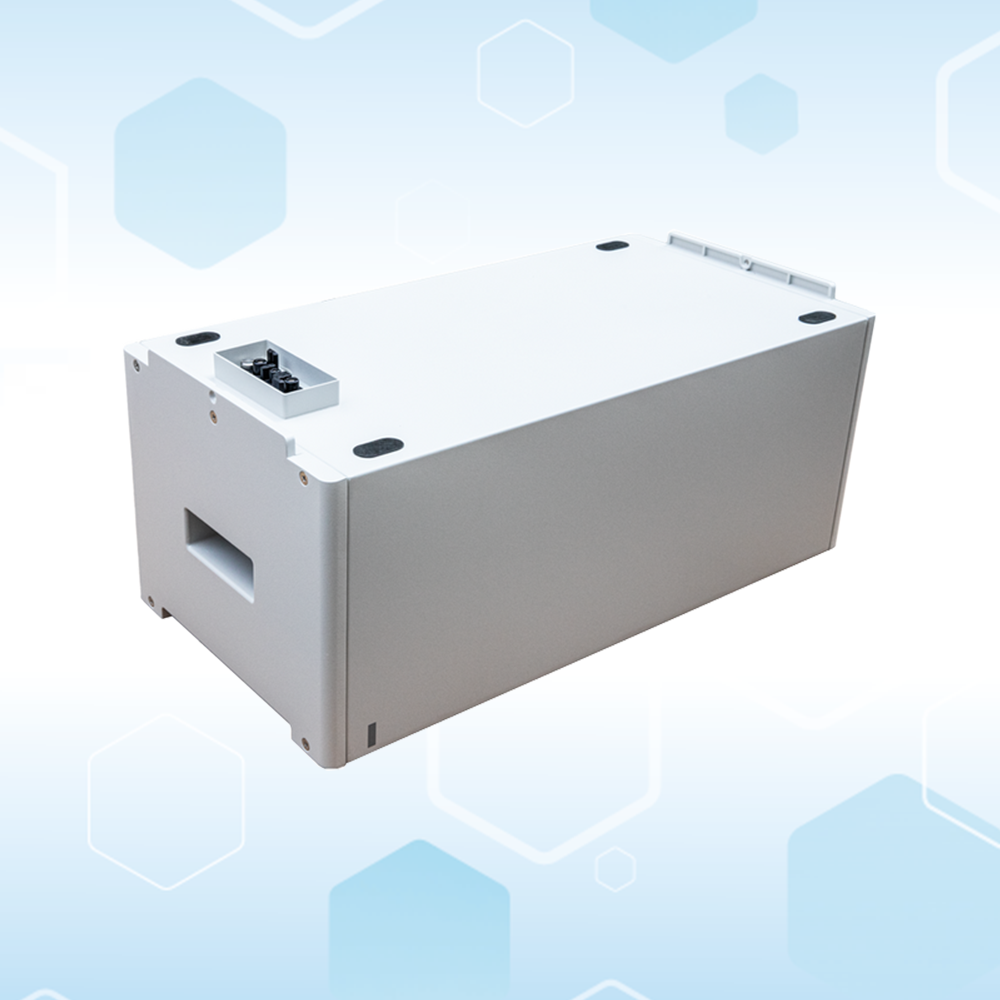

HVS battery module
The BYD HVS Battery-Box is compatible with both single-phase and three-phase high-voltage inverters. A major advantage of these batteries is that they can easily be expanded into a larger storage system, with a maximum capacity of 38.4 kWh. Each tower requires a minimum of 2 and a maximum of 5 modules. Up to 3 towers can be installed per system. This makes the BYD HVS battery an excellent choice for anyone looking for scalable energy storage.

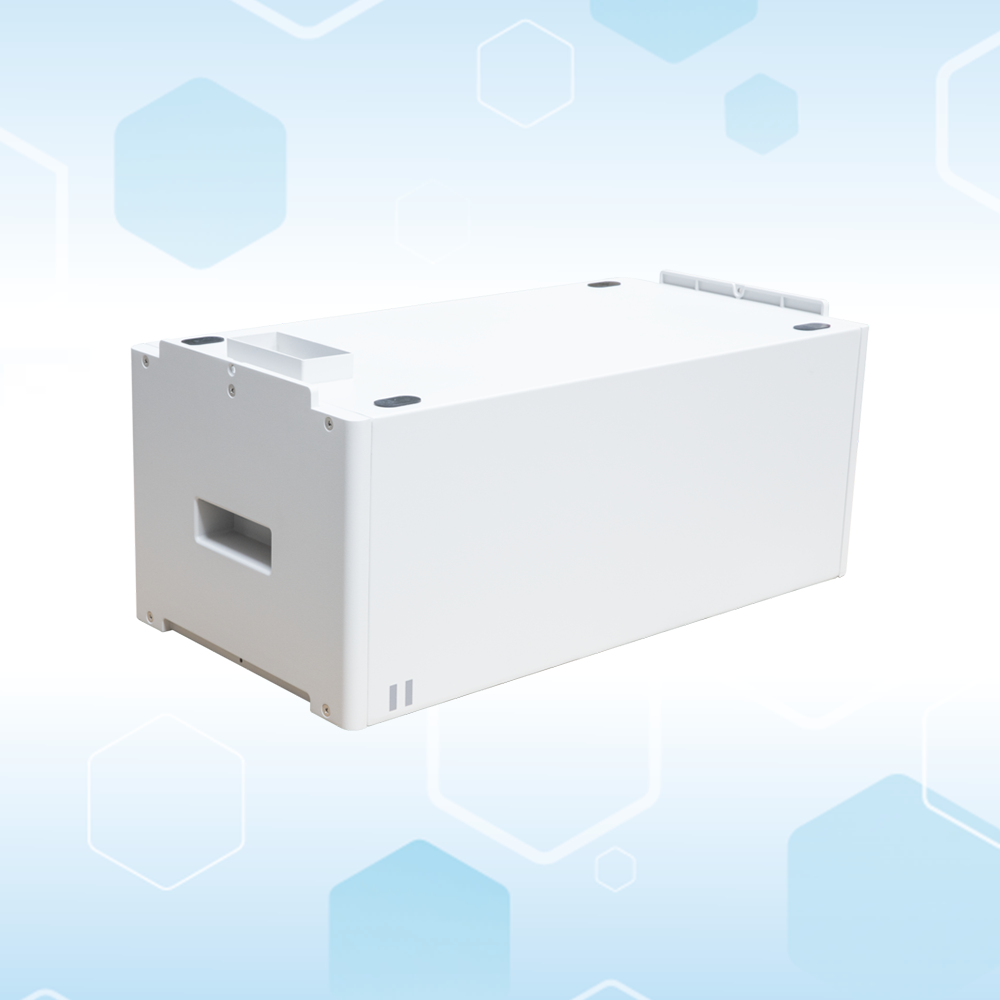

HVM battery module
The BYD HVM Battery-Box is compatible with both single-phase and three-phase high-voltage inverters. A key advantage of these battery modules is their easy scalability they can be expanded into a storage system of up to 66.2 kWh. The BYD HVM battery is slightly larger and heavier than the HVS, resulting in a higher capacity. Each tower requires a minimum of 3 and a maximum of 8 modules, with up to 3 towers installable per system. This makes the BYD HVM battery a flexible solution for those in need of adaptable energy storage.

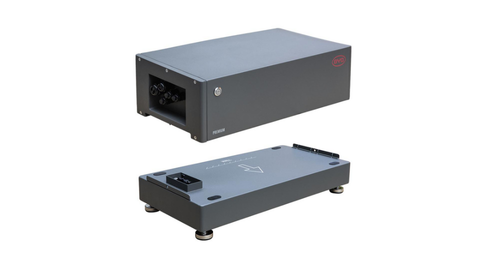

LVS BCU + Base & Cover
LVS BCU + Base & Cover
The BYD Battery Control Unit is compatible with all BYD LVS batteries and comes complete with the base plate, cover, BCU, and wall bracket. The BYD-LVS-Base-Cover is essential for assembling a BYD low voltage battery system. If you're planning to purchase and install a BYD battery, this LVS BCU + Base & Cover set is indispensable.
HVS/HVM BCU + Base & Cover
The BYD Battery Control Unit is compatible with all BYD HVS/HVM batteries and comes complete with the base plate, cover, BCU, and wall bracket. The BYD-HVS-Base-Cover is essential for assembling a BYD high voltage battery system. For those looking for complete solutions for BYD battery storage systems, this set includes everything you need.

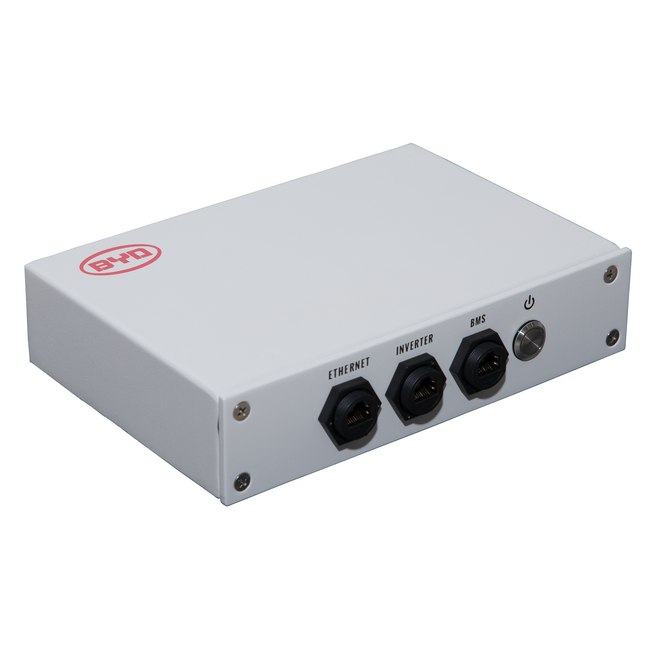

Battery Management Unit
The LVS Battery Management Unit (BMU) from BYD is essential for all low voltage BYD Battery-Box Premium systems and functions as the communication interface between the LVS battery and the inverter. It ensures optimal performance and seamless integration of your battery storage system. Order your BMU and other BYD battery components now to complete your system.
BYD HVS versus HVM
The BYD HVM and HVS batteries are popular modular storage systems for solar energy, but they differ in structure and application. HVM is designed for higher capacities and greater flexibility, while HVS offers higher voltages for more efficient inverters. Below is an overview of the key differences.
HVM
- For larger residential and commercial systems
- 3 to 8 modules per stack
- 8.3 kWh – 22.1 kWh per stack
- Scalable up to 3 stacks in parallel (up to 66.2 kWh)
- 102 V – 409 V (depending on the number of modules)
HVS
- For smaller installations with higher voltages
- 2 to 5 modules per stack
- 5.1 kWh – 12.8 kWh per stack
- Scalable up to 3 stacks in parallel (up to 38.4 kWh)
- 102 V – 512 V (higher maximum voltage possible)
